Check APC UPS
Current Version
2.1.1
Last Release Date
2017-04-20
Compatible With
- Nagios 3.x
- Nagios 4.x
- Nagios XI
Owner
License
GPL
Hits
25612
Files:
File | Description |
---|---|
check_apc.pl | check_apc.pl |
It extends the capabilities and it was modeled to monitor a SYMMETRA APC UPS, however it can support a wide range of APC UPS, already tested on Symmetra and SmartUPS
This script uses only snmp, please note you need PERL installed with modules:
- perl-Net-SNMP
- perl-Switch
UPS uses SNMPv1 that you can configure from the web interface.

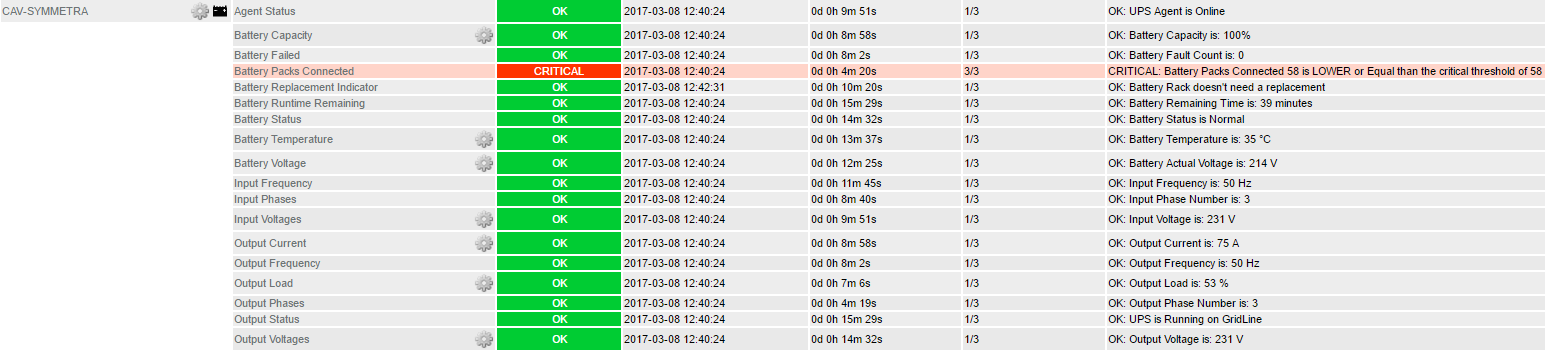

This script provides perfomance data and range monitoring for a wide series of data, it comes with a built-in help
------------------------------------------------------------
Usage:
-H Address of hostname of UPS (required)
-C SNMP community string (required)
-l Command (optional, see command list)
-p SNMP port (optional, defaults to port 161)
-t Connection timeout (optional, default 10s)
-w Warning threshold (optional, see commands)
-c Critical threshold (optional, see commands)
-u Script / connection errors will return unknown rather than critical
Commands (supplied with -l argument):
id
The UPS model name (e.g. 'APC Smart-UPS 600') and interlan info about Firmware, CPU S/N and manufacturing date
bat_status
The status of the UPS batteries
bat_capacity
The remaining battery capacity expressed in percent of full capacity
bat_temp
The current internal UPS temperature expressed in Celsius
bat_run_remaining
The UPS battery run time remaining before battery exhaustion
** NB: thresholds must be expressed in minutes **
bat_replace
Indicates whether the UPS batteries need replacing
bat_num_batt
The number of external battery packs connected to the UPS
bat_num_bad_batt
The number of external battery packs connected to the UPS that are defective
bat_act_volt
The actual battery bus voltage in Volts
** NB: thresholds must be expressed in range as nearest values. ex: normal=220, warning=215:225, critical=210:230 **
** Additionally, the checks will look for Nominal Voltage (as returned by the UPS), and exit as CRITICAL if Actual Voltage is LOWER or Equal **
power_modules
The status of power modules
in_phase
The current AC input phase
in_volt
The current utility line voltage in VAC
** NB: thresholds must be expressed in range as nearest values. ex: normal=220, warning=215:225, critical=210:230 **
in_freq
The current input frequency to the UPS system in Hz
** NB: thresholds must be expressed in range as nearest values. ex: normal=50, warning=45:55, critical=40:60 **
out_status
The current state of the UPS
out_phase
The current output phase

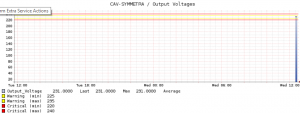

out_volt
The output voltage of the UPS system in VAC
** NB: thresholds must be expressed in range as nearest values. ex: normal=220, warning=215:225, critical=210:230 **
out_freq
The current output frequency of the UPS system in Hz
** NB: thresholds must be expressed in range as nearest values. ex: normal=50, warning=45:55, critical=40:60 **
out_load
The current UPS load expressed in percent of rated capacity
out_current
The current in amperes drawn by the load on the UPS
comm_status
The status of agent's communication with UPS.
- perl-Net-SNMP
- perl-Switch
UPS uses SNMPv1 that you can configure from the web interface.
This script provides perfomance data and range monitoring for a wide series of data, it comes with a built-in help
------------------------------------------------------------
Usage:
-H Address of hostname of UPS (required)
-C SNMP community string (required)
-l Command (optional, see command list)
-p SNMP port (optional, defaults to port 161)
-t Connection timeout (optional, default 10s)
-w Warning threshold (optional, see commands)
-c Critical threshold (optional, see commands)
-u Script / connection errors will return unknown rather than critical
Commands (supplied with -l argument):
id
The UPS model name (e.g. 'APC Smart-UPS 600') and interlan info about Firmware, CPU S/N and manufacturing date
bat_status
The status of the UPS batteries
bat_capacity
The remaining battery capacity expressed in percent of full capacity
bat_temp
The current internal UPS temperature expressed in Celsius
bat_run_remaining
The UPS battery run time remaining before battery exhaustion
** NB: thresholds must be expressed in minutes **
bat_replace
Indicates whether the UPS batteries need replacing
bat_num_batt
The number of external battery packs connected to the UPS
bat_num_bad_batt
The number of external battery packs connected to the UPS that are defective
bat_act_volt
The actual battery bus voltage in Volts
** NB: thresholds must be expressed in range as nearest values. ex: normal=220, warning=215:225, critical=210:230 **
** Additionally, the checks will look for Nominal Voltage (as returned by the UPS), and exit as CRITICAL if Actual Voltage is LOWER or Equal **
power_modules
The status of power modules
in_phase
The current AC input phase
in_volt
The current utility line voltage in VAC
** NB: thresholds must be expressed in range as nearest values. ex: normal=220, warning=215:225, critical=210:230 **
in_freq
The current input frequency to the UPS system in Hz
** NB: thresholds must be expressed in range as nearest values. ex: normal=50, warning=45:55, critical=40:60 **
out_status
The current state of the UPS
out_phase
The current output phase
out_volt
The output voltage of the UPS system in VAC
** NB: thresholds must be expressed in range as nearest values. ex: normal=220, warning=215:225, critical=210:230 **
out_freq
The current output frequency of the UPS system in Hz
** NB: thresholds must be expressed in range as nearest values. ex: normal=50, warning=45:55, critical=40:60 **
out_load
The current UPS load expressed in percent of rated capacity
out_current
The current in amperes drawn by the load on the UPS
comm_status
The status of agent's communication with UPS.
