Highcharts for Nagios
Current Version
1.3.1
Last Release Date
2014-04-10
Compatible With
- Nagios 3.x
- Nagios 4.x
Owner
Download URL
License
GPL
Hits
120386
Files:
| File | Description |
|---|---|
| highcharts4nagios.1.3.1.rar | Ver 1.31 |
| highcharts4nagios.1.3.rar | Ver 1.3 |
Meet The New Nagios Core Services Platform
Built on over 25 years of monitoring experience, the Nagios Core Services Platform provides insightful monitoring dashboards, time-saving monitoring wizards, and unmatched ease of use. Use it for free indefinitely.
Monitoring Made Magically Better
- Nagios Core on Overdrive
- Powerful Monitoring Dashboards
- Time-Saving Configuration Wizards
- Open Source Powered Monitoring On Steroids
- And So Much More!

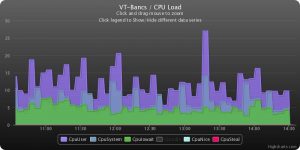

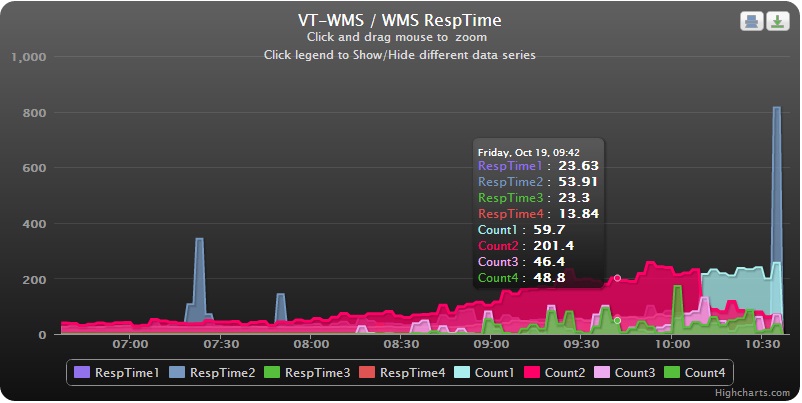

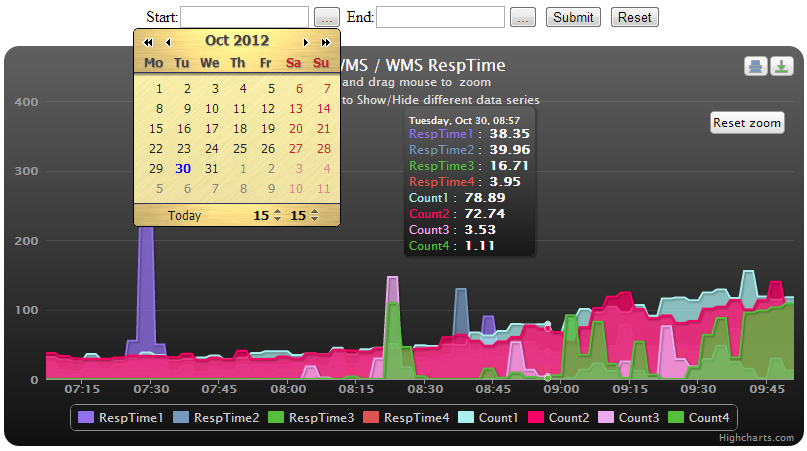

Zooming can be in the X or Y dimension, or both.
It can show/hide different data series and auto adjust X, Y axis.
You can directly export the chart to PNG, JPG, PDF or SVG format.
Highcharts for Nagios
* Import pnp4nagios rrd data to Highcharts.
* Highcharts is a charting library written in pure JavaScript, offering intuitive, interactive charts to your web site or web application.
1.3.1 Fix some bug
Created by ShaoPin Cheng, Taipei, Taiwan
Install Note
----------------------------
1.You must installed pnp4nagios above 0.6.x, NOT work with 0.4.x
2.Download highcharts4nagios.rar, unrar to ex:/usr/local/highcharts/
3.Modify httpd.conf.
4.Add Nagios service config with action_url or notes_url to ex:
notes_url /highcharts/highcharts.html?host=$HOSTNAME$&srv=$SERVICEDESC$
4.Restart httpd and nagios.
5.Other note in my website.
* Import pnp4nagios rrd data to Highcharts.
* Highcharts is a charting library written in pure JavaScript, offering intuitive, interactive charts to your web site or web application.
1.3.1 Fix some bug
Created by ShaoPin Cheng, Taipei, Taiwan
Install Note
----------------------------
1.You must installed pnp4nagios above 0.6.x, NOT work with 0.4.x
2.Download highcharts4nagios.rar, unrar to ex:/usr/local/highcharts/
3.Modify httpd.conf.
4.Add Nagios service config with action_url or notes_url to ex:
notes_url /highcharts/highcharts.html?host=$HOSTNAME$&srv=$SERVICEDESC$
4.Restart httpd and nagios.
5.Other note in my website.
Reviews (13)
byCristhian_Plaza, December 6, 2016
I don't know what is happening with the addon, it doesnt show any graphic, when I clicked for submit it doesnt do anything more¡.
bynicola.sarobba, February 13, 2015
Very interesting. With this plugin you can see the pnp4nagios graphs relative to a service in only one graph.
I also got the famous "blank page", because
I run Apache with SSL and Firefox blocks mixed content: modify line 150 of highcharts.html from http to https and you can see the graph.
I also got the famous "blank page", because
I run Apache with SSL and Firefox blocks mixed content: modify line 150 of highcharts.html from http to https and you can see the graph.
Okay seriously, this is awesome. Got it working with minimal effort (I too had to edit the highcharts.html to change the IP address). You know what would be an awesome followup to this? The ability to download the graphs via URL directly so that they can be included in email notifications.
byembeegee, April 23, 2014
I have been using PNP for a few years now but some times it just lacks a little sharpness in looks.
This does the trick.
I have to be honest it took me several weeks of fiddling to get it working but in the end the fix for me any way was simple.
at line 34 of the latest highcharts.html (v1.3.1)
if (LocHost="your ip here") {LocHost="your ip here"}; // highcharts-IP & pnp4nagios-IP
This does the trick.
I have to be honest it took me several weeks of fiddling to get it working but in the end the fix for me any way was simple.
at line 34 of the latest highcharts.html (v1.3.1)
if (LocHost="your ip here") {LocHost="your ip here"}; // highcharts-IP & pnp4nagios-IP
byehj, April 17, 2014
highcharts.html
LocHost= to the FQDN
LocHost= to the FQDN
Hi, saw this addon, downloaded, installed and ... no graphs :(
No clues in Apache logs.
Eventually worked out why. We have to use Internet Explorer at work, but testing with Firefox the graphs show up! Found a clue on the Highcharts website about spurious commas.
If you look at highcharts.html (from version 1.3), go to line 92 and remove the comma at the end of the line (not the one on the next line before yAxis: { ). Then go to line 137 and remove (or comment out) the comma at the end of that line (the one before //exporting ). Save the file and that solved the problem for me. :)
No clues in Apache logs.
Eventually worked out why. We have to use Internet Explorer at work, but testing with Firefox the graphs show up! Found a clue on the Highcharts website about spurious commas.
If you look at highcharts.html (from version 1.3), go to line 92 and remove the comma at the end of the line (not the one on the next line before yAxis: { ). Then go to line 137 and remove (or comment out) the comma at the end of that line (the one before //exporting ). Save the file and that solved the problem for me. :)
Looks like i'm not the only one having problems installing Highcharts. I'm using all the latest versions of Nagios Core and Pnp4nagios. Installed Highcharts as described, but it is onlw showing timerange for select. Can't get it working for showing graphs. There is no errors in Apache log, and i have read installation instructions. Any suggestion ?
bybobbydale, February 19, 2014
0 of 1 people found this review helpful
I'd say this is a great start for making graphs look much better in Nagios, but the "Highcharts for Nagios" plug-in really needs a few more things.
One item in particular would be a drop down of hosts/services to select.
One item in particular would be a drop down of hosts/services to select.
I cannot see the graphics although the installation is OK. I can put the timeranges, then I click submit and nothing.
Could you help me?
Thanks!
Could you help me?
Thanks!
Owner's reply
1.check apache error log first
2.check Install Note on my website.
Although you have to read all the "readme" and "how to" when it finally works, gives a very professional graphics. If you are smarty enough you can customize the colors etc. Thank you very much for this tool.
Great addon but some installationsteps are missing.
You need to verify some values in highcharts.html to get the charts chowing. I had to change the LocHost= to the FQDN name of the server running Nagios/PNP4Nagios/Highcharts (the same machine for me).
This is documentet in the html file directly but not in the readme or install file.
You need to verify some values in highcharts.html to get the charts chowing. I had to change the LocHost= to the FQDN name of the server running Nagios/PNP4Nagios/Highcharts (the same machine for me).
This is documentet in the html file directly but not in the readme or install file.
Can someone post some basic steps for installing and integrating high charts with pnp4nagios?
bylucup, December 20, 2012
1 of 4 people found this review helpful
Really useful! Easy and quick to install!
Thanks a lot!
Thanks a lot!
