check_snmp_mgeeaton_ups

Rating
8 votes
Favoured:
3
Current Version
1.3.5
Last Release Date
2013-04-18
Compatible With
  • Nagios 3.x
  • Nagios XI
  • Nagios Fusion
License
GPL
Hits
112202
Files:
FileDescription
check_snmp_mgeeaton_ups.plcheck_snmp_mgeeaton_ups.pl - Switch Perl 5.10

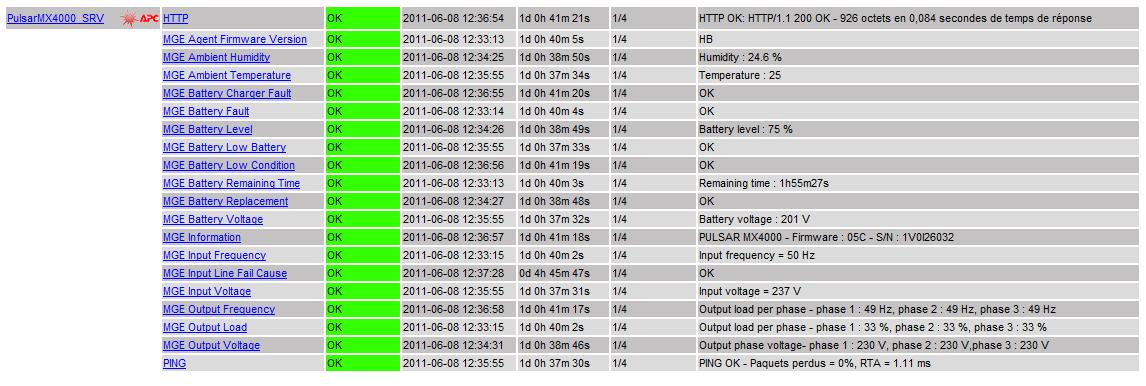

MGE.jpgScreenshot
check_snmp_mgeeaton_ups.plcheck_snmp_mgeeaton_ups.pl - Old switch Perl 5.8
check_snmp_mgeeaton_ups.plcheck_snmp_mgeeaton_ups.pl - Switch Perl 6 (given)
Network Monitoring Software - Download Nagios XI
Log Management Software - Nagios Log Server - Download
Netflow Analysis Software - Nagios Network Analyzer - Download
check_snmp_mgeeaton_ups
Perl script to monitor EATON UPS (Ex MGE-OPS) via Network Management Card 66102 or Network Management Proxy.
Check temperature and humidity if the Environment Sensor 66846 is connected to NMC 66102.
./check_snmp_mgeeaton_ups.pl --help for more information

THANKS TO : Mohand, for making the script compatible with versions earlier than perl 5.8.4

Example of commands :

define command {
command_name check_mge_ups_information
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O information
}

define command {
command_name check_mge_ups_battery_remaining_time
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_remaining_time
}

define command {
command_name check_mge_ups_battery_level
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_level
}

define command {
command_name check_mge_ups_battery_fault
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_fault
}

define command {
command_name check_mge_ups_battery_replacement
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_replacement
}

define command {
command_name check_mge_ups_battery_voltage
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_voltage
}

define command {
command_name check_mge_ups_battery_low_battery
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_low_battery
}

define command {
command_name check_mge_ups_battery_charger_fault
command_line /usr/lib/nagios/plugins/check_snmp_mgeeaton_ups.pl -H '$HOSTADDRESS$' -C public -O battery_charger_fault
}


Example of services :

define service{
use generic-service
hostgroup_name UPS
service_description MGE Information
check_command check_mge_ups_information
}

define service{
use generic-service
hostgroup_name UPS
service_description MGE Battery Remaining Time
check_command check_mge_ups_battery_remaining_time
}

define service{
use generic-service
hostgroup_name UPS
service_description MGE Battery Level
check_command check_mge_ups_battery_level
}

define service{
use generic-service
hostgroup_name UPS
service_description MGE Battery Fault
check_command check_mge_ups_battery_fault
}

define service{
use generic-service
hostgroup_name UPS
service_description MGE Battery Replacement
check_command check_mge_ups_battery_replacement
}
Reviews (5)
bynaknak, May 17, 2016
seems working,

for convenience I use this instead :
define command {
command_name check_mge_ups
command_line $USER1$/check_snmp_mgeeaton_ups.pl -H $HOSTADDRESS$ -C public -O $ARG1$
}

less commands statement, and my hosts looks like

define service{
use generic-service
host_name xxx
service_description battery_remaining_time
check_command check_mge_ups!battery_remaining_time
}
bypure, April 25, 2014
Excellent work, work with EATON EX3000
bysmarechal, December 19, 2013
Thanks a lot, it works nice with COmet EX 7RT
byb.gautier, July 25, 2013
I use this pluggin witch an Eaton SPX 3000 and an ole MGE Evolution S3000. It work fine with this two models.
byIcingaWorker01, February 26, 2013
0 of 2 people found this review helpful
perl -c check_snmp_mgeeaton_ups.pl
String found where operator expected at check_snmp_mgeeaton_ups.pl line 320, near "case "information""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 321, near "case "va_rating""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 322, near "case "battery_remaining_time""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 323, near "case "battery_level""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 324, near "case "battery_replacement""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 325, near "case "battery_fault""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 326, near "case "battery_voltage""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 327, near "case "battery_low_battery""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 328, near "case "battery_charger_fault""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 329, near "case "battery_low_condition""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 330, near "case "input_voltage""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 331, near "case "input_frequency""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 332, near "case "input_line_fail_cause""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 333, near "case "input_bad_status""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 334, near "case "output_load""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 335, near "case "output_voltage""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 336, near "case "output_frequency""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 337, near "case "output_on_battery""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 338, near "case "output_on_by_pass""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 339, near "case "output_over_load""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 340, near "case "output_over_temp""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 341, near "case "output_utility_off""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 342, near "case "output_inverter_off""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 343, near "case "ambient_temperature""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 344, near "case "ambient_humidity""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 345, near "case "agent_firmware_version""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 346, near "case "agent_mib_version""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 1108, near "case "1""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 1109, near "case "2""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 1110, near "case "3""
(Do you need to predeclare case?)
String found where operator expected at check_snmp_mgeeaton_ups.pl line 1111, near "case "4""
(Do you need to predeclare case?)
syntax error at check_snmp_mgeeaton_ups.pl line 319, near ") {"
syntax error at check_snmp_mgeeaton_ups.pl line 321, near "case "va_rating""
syntax error at check_snmp_mgeeaton_ups.pl line 347, near "; }"
syntax error at check_snmp_mgeeaton_ups.pl line 351, near "; }"
syntax error at check_snmp_mgeeaton_ups.pl line 379, near "}"
syntax error at check_snmp_mgeeaton_ups.pl line 1107, near ") {"
syntax error at check_snmp_mgeeaton_ups.pl line 1109, near "case "2""
syntax error at check_snmp_mgeeaton_ups.pl line 1109, near "; }"
syntax error at check_snmp_mgeeaton_ups.pl line 1110, near "; }"
syntax error at check_snmp_mgeeaton_ups.pl line 1111, near "; }"
check_snmp_mgeeaton_ups.pl has too many errors.
