check_rpi_temp.py - Raspberry Pi temperature
Current Version
0.2
Last Release Date
2019-09-30
Compatible With
- Nagios 1.x
- Nagios 2.x
- Nagios 3.x
- Nagios 4.x
Owner
Twitter Handle
ClaudioKuenzler
License
GPL
Hits
5011
Files:
File | Description |
---|---|

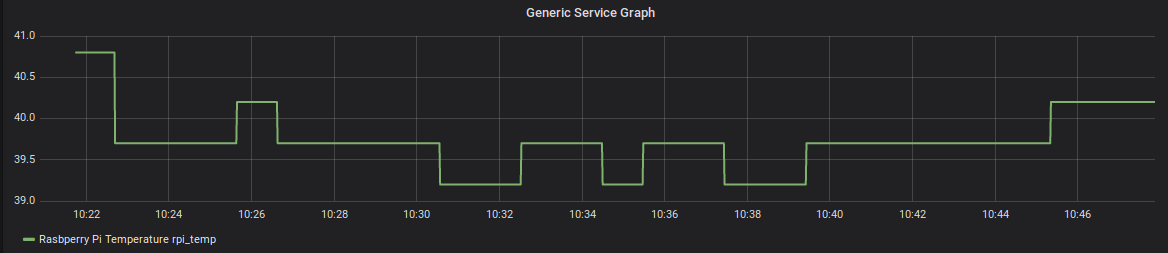

901-raspberry-pi-temperature-graph.png | 901-raspberry-pi-temperature-graph.png |
check_rpi_temp is a monitoring plugin written in Python (compatible with Python2 and Python3) and measures the board temperature of a Raspberry Pi computer. It allows to check thresholds against Celsius and Fahrenheit values. Easy and automatic graphing thanks to the performance data.
The usage is straight forward:
pi@raspberrypi:~ $ /usr/lib/nagios/plugins/check_rpi_temp.py -w 50 -c 60
RPI TEMP OK: Temperature 40.80 degrees c |rpi_temp=40.80;50.00;60.00;;
Or if you prefer Fahrenheit:
pi@raspberrypi:~ $ /usr/lib/nagios/plugins/check_rpi_temp.py -w 90 -c 105 -u f
RPI TEMP CRITICAL: Temperature 105.44 is higher than critical threshold (105.00) |rpi_temp=105.44;90.00;105.00;;
Important note: You need to make sure the user running the command is able to execute vcgencmd. For example if you use the 'nagios' user (default in an NRPE setup), the command fails:
nagios@raspberrypi:~$ /usr/bin/vcgencmd measure_temp
VCHI initialization failed
By default the "pi" and the "root" user are able to run this command. So either define a sudoers rule or create a new user with the same privileges as the pi user.
The usage is straight forward:
pi@raspberrypi:~ $ /usr/lib/nagios/plugins/check_rpi_temp.py -w 50 -c 60
RPI TEMP OK: Temperature 40.80 degrees c |rpi_temp=40.80;50.00;60.00;;
Or if you prefer Fahrenheit:
pi@raspberrypi:~ $ /usr/lib/nagios/plugins/check_rpi_temp.py -w 90 -c 105 -u f
RPI TEMP CRITICAL: Temperature 105.44 is higher than critical threshold (105.00) |rpi_temp=105.44;90.00;105.00;;
Important note: You need to make sure the user running the command is able to execute vcgencmd. For example if you use the 'nagios' user (default in an NRPE setup), the command fails:
nagios@raspberrypi:~$ /usr/bin/vcgencmd measure_temp
VCHI initialization failed
By default the "pi" and the "root" user are able to run this command. So either define a sudoers rule or create a new user with the same privileges as the pi user.
