get_rdp_info

Project Notes

This plugin is designed to be run by NSClient++ on the host you want to check. It is not designed to allow you to check a remote host, this is why there is no option to specify the host name.

Session Information:
The plugin will report how many RDP sessions are Active, Idle or Disconnected.
This is a way to look at daily trends and understand how loaded your servers are.

RDP Bytes:
This plugin will report the total RDP Input and Output bytes of all sessions.
Once again this is a way to look at daily trends and understand how much RDP traffic is generated by your RDP servers. For example users may be transferring files via the RDP protocol, this will be highlighted when looking at the historical data.

Configuring Nagios and NSClient++

Nagios:
The following shows you how to configure your Command AND Service definitions.
Command Definition:
define command {
command_name get_rdp_info
command_line $USER1$/check_nrpe -H $HOSTADDRESS$ -t 30 -c get_rdp_info
}

Service Definition:
define service {
host_name your_host
service_description RDP Info
check_command get_rdp_info
max_check_attempts 3
check_interval 3
retry_interval 3
register 1
}

NSClient++
Version 0.3.x
Copy the plugin to the scripts directory.
Add the following to the [External Scripts] section in NSC.ini:
get_rdp_info=cscript.exe //T:30 //NoLogo scriptsget_rdp_info.vbs

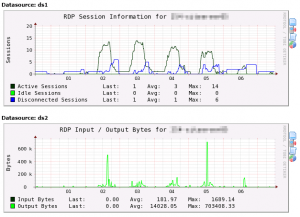

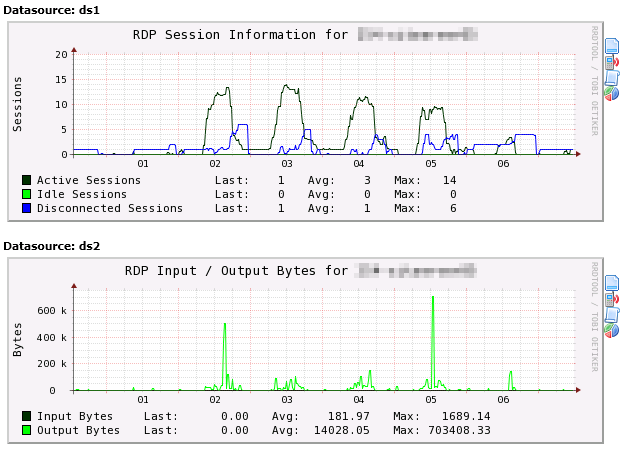

Nagios PNP Performance Graph Template
A custom pnp performance graph template has been provided, this generates two seperate performance graphs.
The file must be placed into the pnp/templates directory on your Nagios host. I have only tested this on Nagios XI and the default location on a Nagios XI host is /usr/local/nagios/share/pnp/templates.
NOTE: The name of the file MUST match the name of the Command Definition command_name. In the example above it is called get_rdp_info and hence this is why the template is called get_rdp_info.php.

License:
This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

To see the license type:
cscript /nologo check_paging_file.vbs -license | more

Help:
To see the help type:
cscript /nologo check_paging_file.vbs -help | more

Version Notes:
2012-10-05 Initial release.

2012-10-10 Updated plugin performance data to include the name of the plugin as the ending string, pnp will see this and use the custom pnp template. This works if you are using this plugin as a passive check.
