Quintum Voice GW, E1/T1 Monitoring

Project Notes

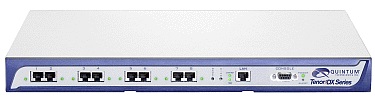

Quintum DX Gateway can be monitor using given SNMP MIB's.

First we have to extract info and interfaces from Quintum GW, use snmpwalk with defined SNMP community of your Quintum voice GW.
snmpwalk -c public -v 1 ip_quintum_GW interface

Here we will get info from our Quintum GW has an IP 192.161.10.3 using check_snmp plugin. we suppose we have read only community "public"

I am writing here check commands which you can easily use to check status of different E1's
## E1 status at port 1 layer 1
check_snmp!-C public -o .1.3.6.1.4.1.6618.3.5.1.4.1 -l 'status' -r Active
## E1 status at port 1 layer 2
check_snmp!-C public -o .1.3.6.1.4.1.6618.3.5.1.5.1 -l 'status' -r Active
## E1 status at port 2 layer 1
check_snmp!-C public -o .1.3.6.1.4.1.6618.3.5.1.4.2 -l 'status' -r Active
## E1 status at port 2 layer 2
check_snmp!-C public -o .1.3.6.1.4.1.6618.3.5.1.5.2 -l 'status' -r Active
## Check total number of E1's installed
check_snmp!-C public -o .1.3.6.1.4.1.6618.3.5.1.5.999 -l 'Total PRIs'
## To check and display CRC Multifram errors
check_snmp!-C public -o .1.3.6.1.4.1.6618.3.5.1.7.1 -l 'Multiframe CRC Errors'
