This plugin will catch used and free Datastore space via SNMP from an VMWare ESX Server, tested with VMware ESXi, 6.7.0 Model: ProLiant BL460c Gen8 32 Cores.
Current Version
1.0
Last Release Date
2021-01-13
Owner
Cesar
License
GPL
Compatible With

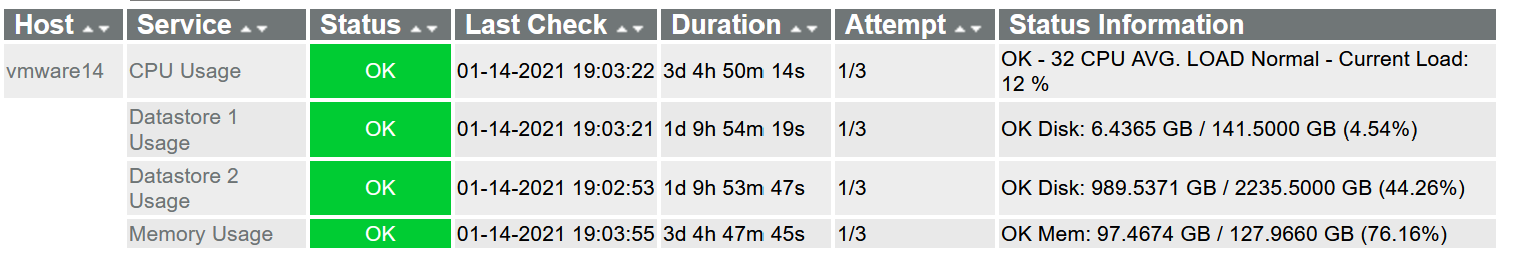

Example of the datastore monitor
This plugin will catch used and free Datastore space via SNMP from an VMWare ESX Server, tested with VMware ESXi, 6.7.0 Model: ProLiant BL460c Gen8 32 Cores <datastore> refers to the datastore position in the list returned by SNMP. For example if you want to check the first datastore of that list then use 1, to check the second use 2 and so on. Make sure that the script is fetiching the right DATA. You can test it with the following command:
snmpwalk -m ALL -c public -v 2c myhost.mydomain .1.3.6.1.2.1.25.2.3.1.5.5
snmpwalk -m ALL -c public -v 2c myhost.mydomain .1.3.6.1.2.1.25.2.3.1.6.5
HOST-RESOURCES-MIB::hrStorageType.5 .1.3.6.1.2.1.25.2.3.1.2.5 OID: HOST-RESOURCES-TYPES::hrStorageFixedDisk HOST-RESOURCES-MIB::hrStorageSize.5 .1.3.6.1.2.1.25.2.3.1.5.5 HOST-RESOURCES-MIB::hrStorageUsed.5 .1.3.6.1.2.1.25.2.3.1.6.5
MIB FILE
/usr/share/snmp/mibs
https://kb.vmware.com/s/article/1013445
SYNTAX: ./check_esx_datastore_snmp <hostname> <SNMPCommunity> <warning> <critical> <datastore>"
EXAMPLE ./check_esx_datastore_snmp myhost.mydomain public 90 95
Created: 2021-01-13 Author : Cesar San based on Mattia Pezzetta work "check_esx_mem_snmp", based on Thibaut Ploquin work "check_hpux_mem", based on Alain van der Heiden & Remco Hage works "check_snmp_hpux_mem"
Changes: 2021-01-13 First Release
Hi, Plugin wasn't working even with snmpwalk installed correctly. I made some modifications and modified your script for V2 and V3. Thanks for the base script.
ESXi 6.7 test error: nagios#snmpwalk -m ALL -c detpub -v 2c 192.168.14.100 .1.3.6.1.2.1.25.2.3.1.3 Bad operator (INTEGER): At line 73 in /usr/share/snmp/mibs/ietf/SNMPv2-PDU SUPPORTS (is a reserved word): At line 59 in /usr/share/snmp/mibs/VMWARE-NSX-AGENTCAP-MIB.mib INCLUDES (is a reserved word): At line 60 in /usr/share/snmp/mibs/VMWARE-NSX-AGENTCAP-MIB.mib Bad operator (,): At line 61 in /usr/share/snmp/mibs/VMWARE-NSX-AGENTCAP-MIB.mib HOST-RESOURCES-MIB::hrStorageDescr.1 = STRING: /vmfs/volumes/ed338779-ce63a34b-4a9a-6333788de99b HOST-RESOURCES-MIB::hrStorageDescr.2 = STRING: /vmfs/volumes/fb77b97d-a6419beb-1a5d-9644f1d66a61 HOST-RESOURCES-MIB::hrStorageDescr.3 = STRING: /vmfs/volumes/5b537a0f-504a0b9e-f354-509a4c8c2a70 HOST-RESOURCES-MIB::hrStorageDescr.4 = STRING: /vmfs/volumes/5b537a15-e9a92760-48cb-509a4c8c2a70 HOST-RESOURCES-MIB::hrStorageDescr.5 = STRING: /vmfs/volumes/5944f1c1-90b76f4e-ff8c-2c27d7149f5f HOST-RESOURCES-MIB::hrStorageDescr.6 = STRING: /vmfs/volumes/5b537a15-c0d7e082-4c81-509a4c8c2a70 HOST-RESOURCES-MIB::hrStorageDescr.7 = STRING: /vmfs/volumes/5b537d1a-98df1272-d46d-509a4c8c2a70 HOST-RESOURCES-MIB::hrStorageDescr.8 = STRING: /vmfs/volumes/6277b27d-a6bf6dfd-0000-000000000000 HOST-RESOURCES-MIB::hrStorageDescr.9 = STRING: Real Memory nagios#./check_esx_mem_snmp 192.168.14.100 detpub 90 95 (standard_in) 1: syntax error (standard_in) 1: syntax error (standard_in) 1: syntax error (standard_in) 1: syntax error ./check_esx_mem_snmp: line 116: [: -ge: unary operator expected (standard_in) 1: syntax error ./check_esx_mem_snmp: line 134: [: -ge: unary operator expected (standard_in) 1: syntax error (standard_in) 1: syntax error (standard_in) 1: syntax error ./check_esx_mem_snmp: line 164: [: 95: unary operator expected ./check_esx_mem_snmp: line 167: [: 90: unary operator expected OK Mem: scale=0 ; "Real Memory" MB / scale=0 ; "Real Memory" MB (%)|used=B size=B
I see snmpwalk is not working well. You need to have it working fine first, before test the script
