Exchange 2010 Performance Counters

Submit review Recommend Print Contact Owner

Rating

0 votes

Favoured:

Current Version

Last Release Date

2011-08-08

Compatible With

Nagios 3.x

Owner

hamiljockey

Hits

109874

Files:

File	Description
ActiveSync.pl	Activesync Counters
Database.pl	Database Counters
LDAP.pl	LDAP Counters
MemoryPages.pl	Memory Counters
MessageQueuing.pl	Message Queue Counters
RPC.pl	RPC Counters
RPCThrottling.pl	Throttling Counters
cacti_host_template_exchange_2010.xml	Cacti Template

Meet The New Nagios Core Services Platform

Built on over 25 years of monitoring experience, the Nagios Core Services Platform provides insightful monitoring dashboards, time-saving monitoring wizards, and unmatched ease of use. Use it for free indefinitely.

Download Now

Monitoring Made Magically Better

Nagios Core on Overdrive
Powerful Monitoring Dashboards
Time-Saving Configuration Wizards
Open Source Powered Monitoring On Steroids
And So Much More!

View gallery

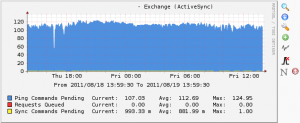

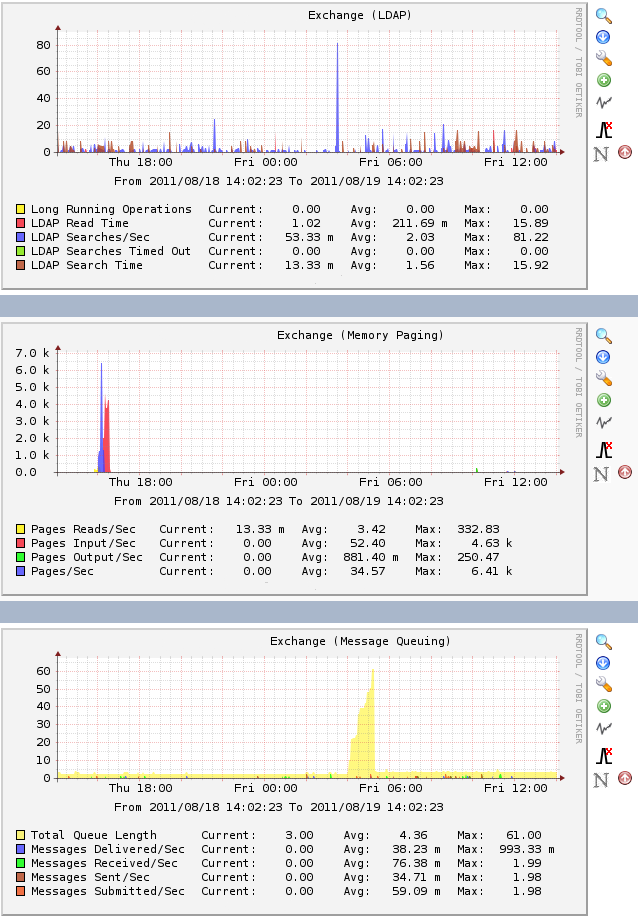

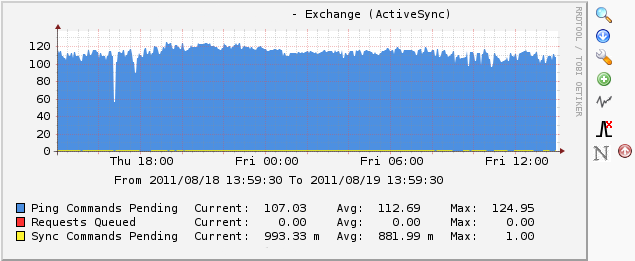

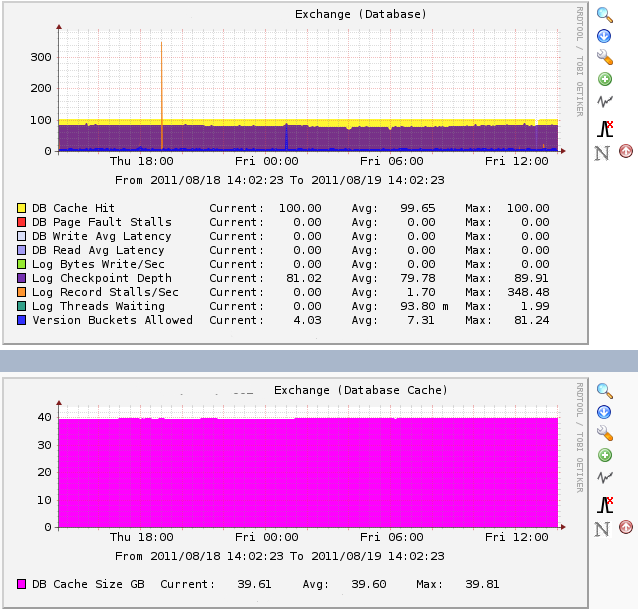

Here are several scripts I put together to monitor various exchange 2010 performance counters. Activesync, Memory, Database, RPC, Message Queue, Throttling counters. A good start for getting a handle on Exchange 2010. Hope people can find this useful.

Link to template.
http://exchange.nagios.org/index2.php?option=com_mtree&task=print&link_id=2725&Itemid=74

I use NS++ client on the exchange servers to interface with cacti. http://www.nsclient.org/nscp/
The scripts are run by the cacti server to poll the NS++ client on exchange. The data returned by the scsripts is put into the cacti template.
