ndo2db grapher

Last version : v0.3.2 (2009/02/16)





Changelog:


* bugfix


* we are now able to select sub indicator when graphing (aka avg, min, max, crit and warn). So things are now simplier.


* disabling anti aliasing by default as Debian doesn't support it.


v0.3.1 (2009/01/28)





Changelog :


* bugfix in the javascript : now I'm using a class to handle pregenerated image.


* including directly the css directory so no more needed to download it.





This release only include bugfix if you are using pre-generated image (from v0.3).


v0.3 (2009/01/15)





Changelog :


* bugfix


* optimization by handling spited table for nagios_servicechecks (you need to split this table in multiple table named nagios_servicechecks_YYYYmmdd). This can achieve a huge difference if you have a big database. To give you an order, I got 14 Gb of data splitted into 150 tables to get 150 days of history. To do the job, you can try rotate_nagios_servicechecks.sh BUT BEWARE, USE IT AT YOUR OWN RISK !!! DO A BACKUP BEFORE LAUNCHING THIS SCRIPT AND MAKE TEST BEFORE USING IT ON A REAL PLATFORM !!!


* fix a bug (cannot store more than 255 bytes of performance data) by switching from VARCHAR255 to BLOB to store result (rotate_nagios_servicechecks.sh is handling this).


* handling of static generated graphic with generate_month_graphic.sh. This script generate png of previous day and store it in a cache directory.





You'll need to change you crontab in order to launch this script. Here's an example of what you can do :


# rotage nagios_servicechecks table. USE IT WITH CARE !!! YOU CAN LOSE YOUR DATA !!!


20 */2 * * * /path/to/nagios/scripts/rotate_nagios_servicechecks.sh> /path/to/nagios/log/rotate_servicechecks.log 2>&1


# generate static graphics


30 4 * * * /path/to/nagios/scripts/generate_month_graphic.sh> /path/to/nagios/log/generate.log 2>&1





v0.2.1 Changelog :





* generate only a graphic (using the option dump_graphic=1) to embed directly graphics in nagios web pages.


* generate cumulate area for CPU graphic


* force min and max value


* bugfix


v0.2 Changelog :





* cumulate indicators from various host


* bugfix.


v0.1





* multiple selection of various indicators


* multiple host selection


* average value








Actually, I'm only supporting MySQL backend but if someone need to support PostgreSQL, just send me an email :) (yannig_DOT_perre_AT_gmail_DOT_com)


Installation





ndoutils








First, you'll need a working ndo2db/ndoutils backend working with nagios. To install it, go fetch ndoutils here : http://sourceforge.net/project/showfiles.php?group_id=26589&package_id=173832





Compile it and install it against your version of nagios. Edit nagios config file by adding the following line :


...


# ndoutils broker


broker_module=/path/to/your/ndomodule/ndomod.o config_file=/path/to/your/ndomod/config/file/ndomod.cfg


...





Then edit your ndomod.cfg. Here's an example :





root@XXX # more ndomod.cfg


instance_name=default


#output_type=file


#output_type=tcpsocket


output_type=unixsocket





output=/path/to/your/nagios/var/ndo.sock


tcp_port=5668


output_buffer_items=50000


buffer_file=/path/to/your/nagios/var/ndomod.tmp


file_rotation_interval=14400


file_rotation_timeout=60


reconnect_interval=15


reconnect_warning_interval=15


data_processing_options=-1


config_output_options=0





Then edit you ndo2db.cfg. Here's an example :


Tune DB information





root@XXX # more ndo2db.cfg | egrep -v -e "^#" | egrep -v -e "^$"


ndo2db_user=patrol


ndo2db_group=produit


socket_type=unix


socket_name=/path/to/your/nagios/var/ndo.sock


tcp_port=5668


db_servertype=mysql


db_host=localhost


db_port=3306


db_name=nagios


db_prefix=nagios_


db_user=mysql_nagios_user


db_pass=mysql_nagios_passwd


max_timedevents_age=1440


# aka = 7 days


max_systemcommands_age=10080


# aka = 10 days


max_servicechecks_age=14400


# aka = 7 days


max_hostchecks_age=10080


max_eventhandlers_age=44640


debug_level=1


debug_verbosity=0


debug_file=/path/to/your/nagios/var/ndo.debug


max_debug_file_size=1000000





Warning ! You'll need to create an initial database containt by using mysql.sql script in db sub directory in the ndoutils package (v1.4b7).





Launch your ndo2db daemon :


/path/to/your/nagios/bin/ndo2db-3x -c /path/to/your/nagios/etc/ndo2db.cfg


Restart nagios daemon.





If you see something like this in the nagios log, then you've got a working version of ndo2db !





12xxxxxxxx ndomod: Successfully reconnected to data sink! 0 items lost, 236 queued items to flush.


12xxxxxxxx ndomod: Successfully flushed 236 queued items to data sink.


Install ndo2db grapher








Then you can try to use the ndo2db grapher. Untar ndo_graph.tar.gz then configure the mysql connection by editing nagios_graph_conf.inc.php:





$cache_directory = "/var/www/cache";


$db_host = "localhost";


$db_user = "root";


$db_pass = "";


$db_name = "nagios";





Warning : You will need the presence of jpgraph at the same level as the php pages (download it at this location : http://www.aditus.nu/jpgraph/).





Then edit the default generic-service to add the following elements:





define service {


name generic-service


...


notes Graph


notes_url /display_nagios_info.php?name1=$HOSTNAME$&name2=$SERVICEDESC$


...


}

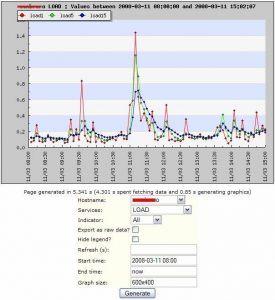

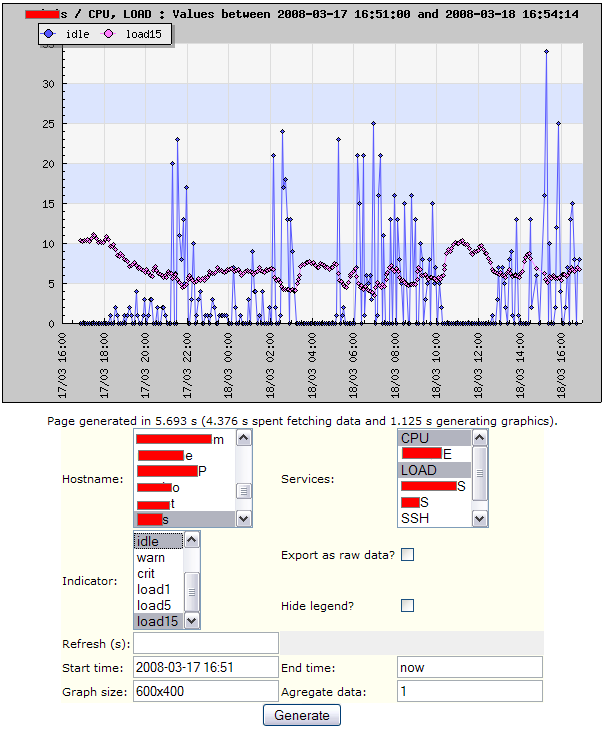

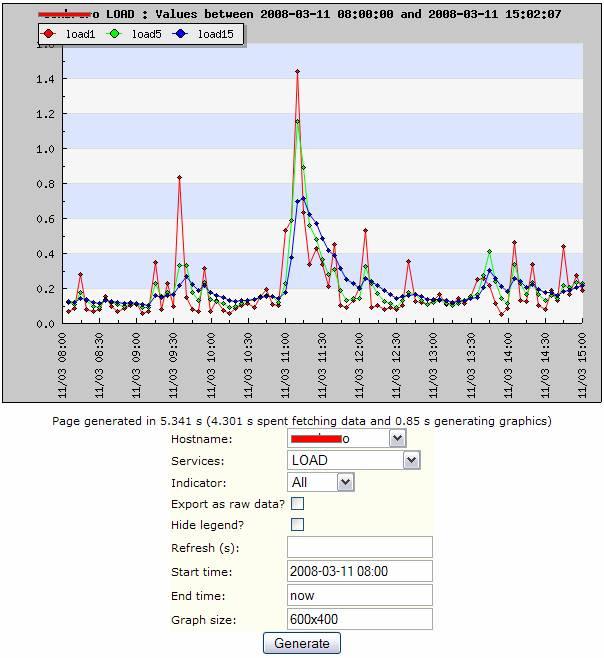

Even better, (version major or equal to v0.2.1) you can embed directly a graphic in nagios pages (see screenshot) :





define service {


name generic-service


...


notes


notes_url /display_nagios_info.php?name1=$HOSTNAME$&name2=$SERVICEDESC$


...


}





http://www.nagiosexchange.org/cgi-bin/jump.cgi?ID=1574&view=File9;d=1





You will see a nice icon in nagios which let you display nice graphics from the ndo2db backend.





Note for omegax and brn : Thanks for your report, I'll take a look at your advices.
